Introducing the New EDP-H2 Magnet Controller

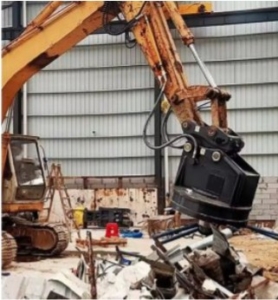

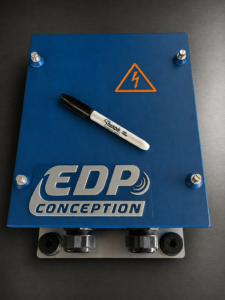

The EDP-H2 from EDP Conception is a compact, cost-effective magnet controller specifically designed for self-contained hydraulic lifting magnets.
With its compact dimensions of 220 × 365 × 140 mm, the EDP-H2 is ideal for applications where space is limited while still delivering fast and reliable magnet performance.
Key Features:
- Designed for self-contained hydraulic magnets.
- No control cable or remote control required for normal operation.
- To release the load, simply reduce the generator engine RPM to a complete stop. The controller automatically initiates the demagnetization cycle, ensuring a fast and clean material release.
- Can be upgraded with the L-D-H2-CH electronic PCB to operate as a conventional magnet controller using either a control cable or wireless remote control, just like the one shown in the demonstration video.
- Maintains the same fast demagnetization speed in both operating modes.
- Our smallest and most affordable magnet controller, without compromising performance or reliability.
